Multimode fiber
Test LANs, industrial & education applications. Used in simple, high-value, short distance networks.

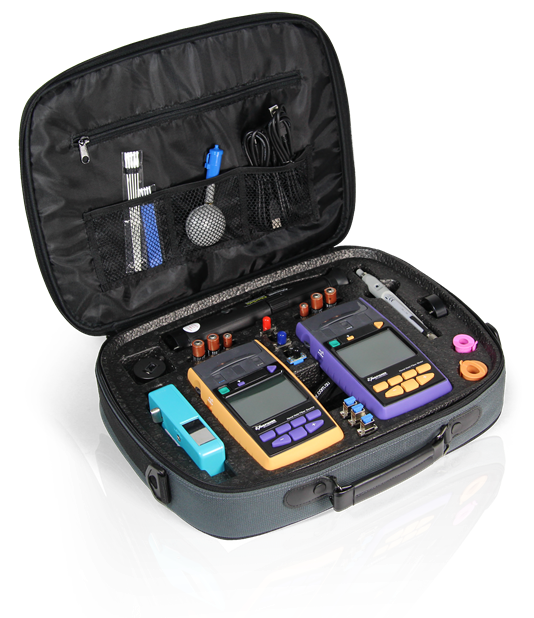

- Popular kit for single mode and multimode applications.
- KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
- KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, memory, USB
- KITS™ Reporting software
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Optional visible fault locator eg KI6354 etc as required
- Meets TIA-568-C.0
- Popular kit for single mode, multimode and MPO applications.
- KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
- KI2600XL-Ge5 Optical power meter with large area Ge detector, Autotest, 10 calibration wavelengths, memory, USB
- KITS™ Reporting software
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Connectors: MPO / MTP™, LC, SC as appropriate
- Optional visible fault locator eg KI6354 etc as required
- KI9809AM 650 / 660 nm LED source
- KI9600XL-Si5 Optical power meter with 5 mm Si detector & 6 calibration wavelengths
- KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
- KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, USB, optional Visual Fault Locator
- KITS™ Reporting software
- KI6102AA-APC PON power meter
- Pass/Fail setup & reporting software
- KI6610 x200 Connector inspection microscope (or Fiber identifier)
- KI6354 Visual Fault Locator
- Cleaning tools & materials
- KI2825-APC 850 / 1300 / 1310 / 1550 / 1625 nm Autotest LED / laser source
- KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, memory, USB
- KITS™ Reporting software
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Optional visible fault locator as required
- Specifically designed for Australian test requirements.
- Meets TIA-568-C.0
- KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
- KI2600-Ge Optical power meter with InGaAs detector, Autotest, 24 calibration wavelengths, memory, USB, optional Visual Fault Locator
- KITS™ Reporting software
- KI9812 850 / 1300 nm LED Source
- KI9600-Ge Optical power meter with Ge detector, 9 calibration wavelengths
- KITS™ Reporting software, manual data entry
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Optional visible fault locator eg KI6354 etc as required
KI9600-Ge Optical power meter with Ge detector, 9 calibration wavelengths
KITS™ Reporting software, manual data entry
KI6610 x200 Connector inspection microscope (or Fiber identifier)
KI6354 Visual fault locator
Cleaning tools & materials
- KI9822 1310 / 1550 nm Laser Source and KI9812 850 / 1300 nm LED Source
- KI9600-Ge Optical power meter with Ge detector, 12 calibration wavelengths
- KITS™ Reporting software, manual data entry
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Optional visible fault locator eg KI6354 etc as required
- Meets TIA-568-C.0
- A popular solution for MPO / MTP testing.
- Multimode 850 nm applications
- KI9812 850 / 1300 nm LED Source
- KI9600XL-Si5 Optical power meter with large area Silicon detector, 8 calibration wavelengths
- KITS™ Reporting software, manual data entry
- KI6610 x200 Connector inspection microscope
- Cleaning tools & materials
- Connectors: MPO / MTP™, LC, SC as appropriate
- Optional visible fault locator eg KI6354 etc as required
- KI9822 1310 / 1550 nm Autotest Laser source
- KI2600-InGaAs Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, USB, optional Visual Fault Locator
- KITS™ Reporting software
- KI9822 1310 / 1550 nm Autotest Laser source
- KI9600-InGaAs Optical power meter with InGaAs detector & 9 calibration wavelengths
- KI2822 1310 / 1550 nm Autotest Laser source
- KI2600-InGaAs Optical power meter with InGaAs detector, Autotest, 24 calibration wavelengths, USB, optional Visual Fault Locator
- KITS™ Reporting software
- KI6610 x200 Connector inspection microscope (or fiber identifier)
- Cleaning tools & materials
- Optional visible fault locator eg KI6354 etc as required
- All optimised for MTP™/MPO, LC and SC connectors
- Additional space for other equipment
See also: Test kits for mixed single mode & multimode environments
Environment
Multimode fiber operating environments are short distance (<2KM) but can be very high value, and are often in relatively harsh, unprotected or high-change environments. The most common applications are Ethernet or CCTV. Test accuracy may need to be high, since allowable cable losses can be small. Operationally, on-site expertise may be modest, or contractors are called in who may need to produce customer reports, which can be a time-consuming effort.
Popular Solutions
- Our unique KITS™ software provides easy & secure reporting
- EF compliant LED sources.
- Our Ge power meters have detectors that are accurate from 850 – 1550 nm.
- Our inspection microscope is safe, easy to use and provides a good image
- Interchangeable connectors easily accommodate your varying connector styles
- Our Multimode Fiber Test Kits wrap this capability up in one convenient p/n.
Major Benefits
- Reduced training, suitable for use by inexperienced staff
- Just add an extra test source later, and upgrade to single mode.
- Flexibility to get the job done first time, regardless of unexpected site variations
- More accurate testing
- Flexible, secure & easy reporting
- Great service, support & warranty
