One-touch AutoTest

What it does

Autotest communicates between two fiber loss test instruments, using the fiber under test.

Used on a source and meter, it sends data from the source to the meter. It synchonises the instrment settings and test process, including nominal source power and serial number.

Used with a pair of two-way testers, two-way data transfer additionally shares the complete bi-directional test results. So both instruments display & store the results. ORL is also integrated into the test sequence.

Two-way Autotest also includes simple user comminications, to assist the sequence of loss testing actions, and avoid the need of using a separate voice link. This also works via KITS™ software.

Faster, smarter, error free operation.

  • Works between any source & meter ports with matching wavelengths, resulting in flexible field operations between quite different instruments.
  • Fast, reliable and stable testing with less training, button pushes and errors.
  • Use with KITS™ software for best convenience, either real time or post-processing.
  • Supports both local or remote referencing.
  • Specify which wavelengths to include. Set up simple one wavelength tests, or speed up a two wavelength test when using a quad wavelength source.
  • Display just one wavelength on your meter, for simplicity.
  • If a wavelength drops out (very high loss), remaining wavelengths continue unaffected.
  • Two-way testers work seamlessly, so that compete test data can be viewed and saved at either end.
  • ORL test is zero-effort & integrated into the general test sequence.

Light source and power meter measuring loss

Autotest Instruments


KI 9600A Pocket Power Meter

  • Simple shirt-pocket size power meter
  • Options for all networks & users
  • Low-skill TamperLock mode
  • Ideal for transmission installers
  • Leading accuracy
KI 2600 Handheld Power Meter

  • Productivity power meter
  • Options for all networks & users
  • Ideal for cable installers
  • Powerful reporting capability
  • Optional VFL
KI 6102 GPON / PON Power Meter

  • Economical in-line meter for PON test
  • Simple and reliable operation
  • 1310 / 1490 / 1550 nm, two ports
  • 100 test memory with PC software
KI 9800A Pocket Fiber Source

  • Economical shirt-pocket size source
  • Options for SM, MM, POF etc
  • Low-skill TamperLock mode
  • MM is EF compliant
  • Eye safe high power VFL 5 mW
KI 6358 Pen Visual Fault Finder

  • Pen-sized universal VFL 1mW
  • Eye safe class 1 laser
  • LC / 1.25 mm universal adapter option
KI 2800 Handheld Source

  • Versatile productivity source
  • Options for SM, MM, POF etc
  • SM + MM quad up to 6 λ
  • Unique VisiTester VFL
KI 2400 Handheld Source with Zero Warm-up

  • Unique Zero Warm-up, optically stabilized source
  • Ultimate stability over temperature & ORL
  • Up to 6 SM λ
  • eLED option for precise loss & CD testing
KI 6610 FiberSafe Microscope

  • Microscope for inspection of SM, MM, MPO and POF networks
  • Best quality and image
  • Wide range of interchangeable adaptors
  • Many helpful features



KI 6680 Fiber Inspection Probe

  • Scope to check mated & unmated connectors SM, MM, MPO
  • Software for Windows, Apple or Android devices
  • Wifi or USB connection
  • Easy operation



KI 7340 Handheld Two-Way Loss Test Set with ORL & Zero Warm-Up

  • Fastest & most accurate certifier
  • Bi-directional Loss & ORL on one fiber
  • Zero warm up time sources
  • Pass / Fail display
KI 7740 Handheld Two-Way Loss Test Set

  • Fastest fiber optic certifier
  • Bi-directional loss on one fiber
  • Pass / Fail display

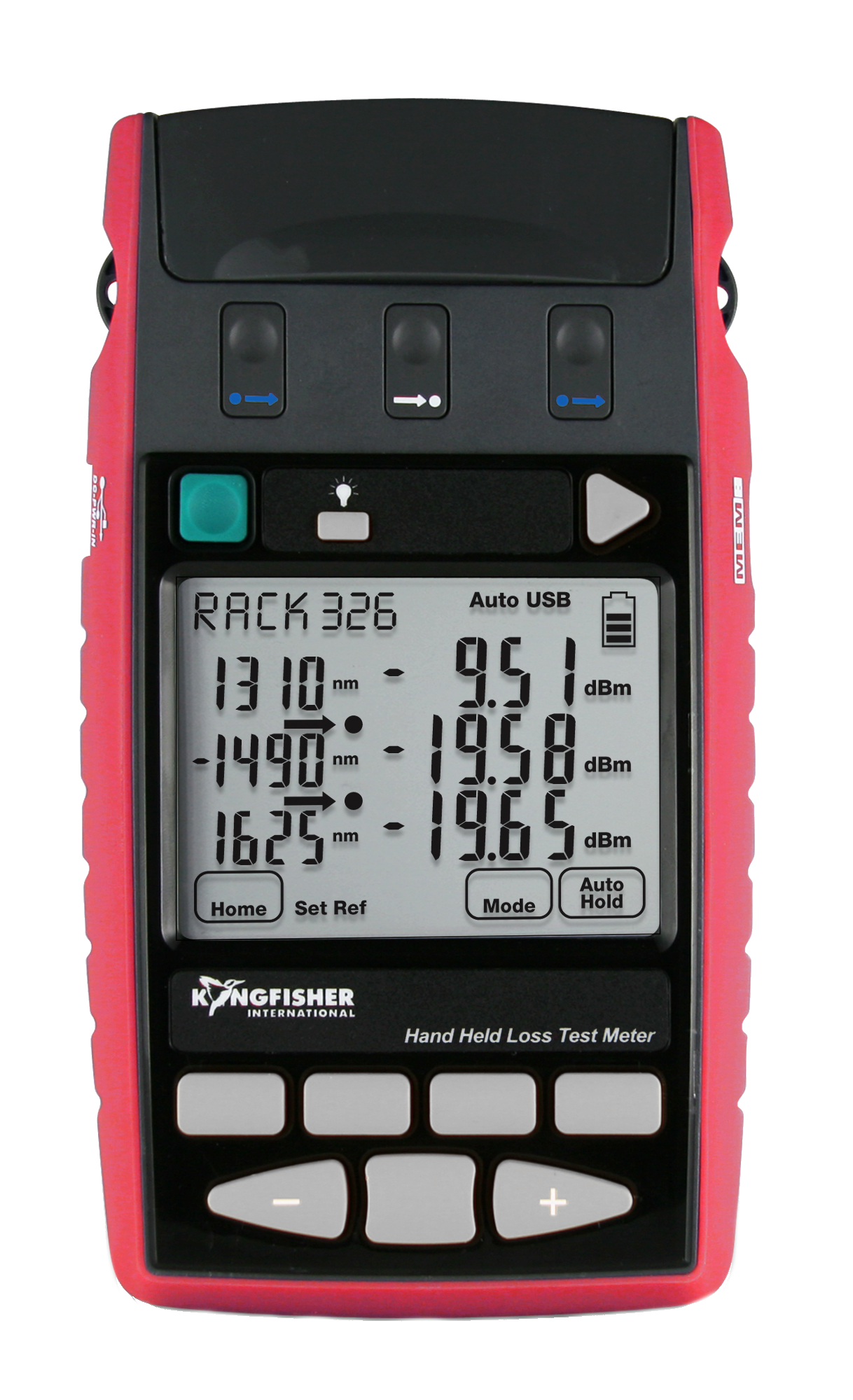

KI 2700 Handheld Loss Test Set

  • Versatile Loss Test Set
  • VFL-VisiTester option
  • SM, MM & Quad versions
  • MPO CS POF versions
KI 2300 Handheld Loss Test Set with Zero Warm-Up

  • Highest accuracy OLTS
  • Zero warm-up time sources
  • Singlemode fiber only
KI 6170 Clip-on fiber identifier

  • Clip-on to check for traffic or test tones
  • Low false detection rate
  • Optical Power display
  • Requires a light source with tone facility
KI 7010 Series Variable Optical Attenuator

  • SM, MM & POF versions
  • Best optical specifications
  • Easy to use, rugged & reliable
  • Remote control vis RS232
Hybrid Adaptor Series

  • Sources, attenuators, OLTS
  • Most power meters except XL series
  • G2 connector
  • Useful to make test adapter leads
XL Series Power Meter Adaptor Series

  • Large area XL series power meters
  • Legacy KI6000 power meters
  • Also fits other instruments
KI66xx Microscope Adaptor Series

  • KI661x FiberSafe Optical Microscope
Miscellaneous Accessories

Various accessories and kit components for Kingfisher testers.

MPO Patch Cords & Test Leads

Test Grade MPO Patch Leads to improve your test accuracy

Cold Clamp (buried cable fault locator)

  • Use liquid nitrogen to induce a non-destructive optical marker
  • Use with OTDR to localize physical fault within 1m
  • Significantly improve real-world response & labor time
  • Works on live systems
KI-UBENCH

POF air-gap collimator assembly useful to place bulk optics devices, sensors or samples into plastic optical fiber light path.

G2 Panel Mount Connector Series

  • Universal Optical Connector for OEM, test & production
  • For connectors with 2.5 & 1.25 mm ferrule, SMA, POF and others
