Overview

The Kingfisher FiberSafe Microscope instrument series is the fiber inspector of choice for checking unmated fiber optic connectors for dirt, end face quality and patch lead continuity. High quality construction & helpful features improve the performance of all technical staff in portable or desktop applications.

If fitted with a tripod and micro-USB external power, for bench applications, the illumination just stays on. So this unit easily adapts to situations from occasional field use, through to continuous-use.

  • Best image quality & ease of use
  • 200x for typical SM, MM & MPO use
  • 400x for experienced SM use
  • 40x for MPO (full end-face), POF & HCS
  • Optional eyepiece easily swapped for other magnifications 80x, 100x
  • Improved eye safety makes Class 3B VFL eye-safe if accidentally viewed.
  • Fiber connector adapters male LC/APC, SC/APC, FC/APC, ST, universal 1.25 & 2.5 mm, MPO/MTP SM & MM, MT Ferrule, E2000/APC, HFBR, SMA, ARINC 801
  • Easy focus & image centering
  • Long alkaline battery life or external power
  • Video capture option
  • Stabilized illumination with timer
  • Lanyard and tripod mounts
  • Coaxial, oblique or core illumination
  • 3 year warranty
  • Australian designed and made
  • QA report with ISO 9001 traceable eye safety test

Part Number Details

Products
Part Number
Description
Suited for
200x, 2.5 mm Univ
Suited for
400x, 2.5 mm Univ
Suited for
40x, 2.5 mm Univ
Suited for
Not sure? Make a general enquiry.

Key Features

Specifications

General FiberSafe Microscope KI 6610 Series specifications

For more detailed specifications, please select a specific part number from the parts & stock section.

Max eye safety input limit (IEC60825-2 Ed.3.1) 20 dBm (@ 635 ~ 800 nm) / 30 dBm (@ 800 ~1650 nm)

Illumination modes Coaxial, oblique, core

Damage level 30 dBm

Power Battery / External power via micro-USB

Battery 1x AAA (LR03) Alkaline

Battery life 300 hours (coaxial illumination for KI6608 & KI6610) / 75 hours (coaxial illumination for KI6611)

Auto off When powered by battery

Size 184.4 mm x 49.3 mm

Unit weight 0.21 kg

Shipping weight 1.5 kg

Illuminating LED's life 100,000 hours

Operating / storage temperature -15 to 55°C / -25 to 70°C

Eyepiece Mount 23.2 mm diameter push-in (standard mount)

Fiber Adaptor Mount 1-1/2" UN 28 TPI 2A Thread

Relative humidity 95%

Warranty 3 years


Documentation & Support

In the box

Optional accessories

OPT155

Semi-Rigid Carry Case for Test Kits OPT155

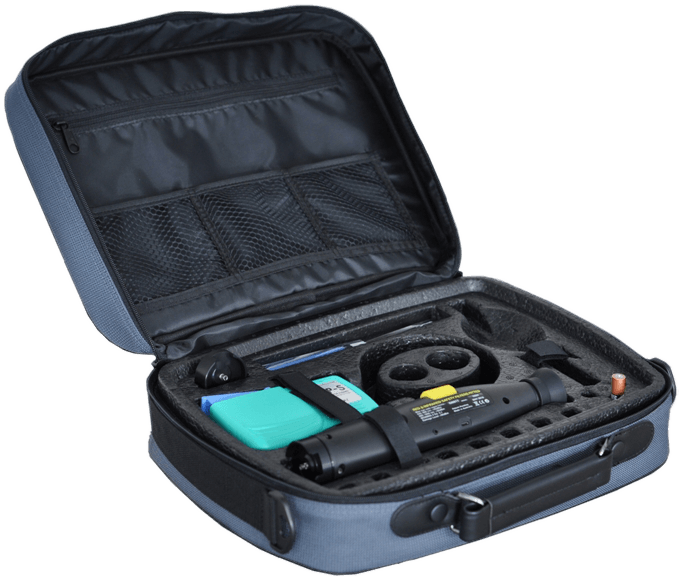

Semi-rigid canvas test kit case for three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

OPT154B

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

TOOL CLEAN-09A

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-03

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc
