Fiber Test Kits

Our wide range of dependable Test Kits provide make it easy to test, inspect, certify and maintain fiber optic cable across all test scenarios.



KI-TK072 SM & MM 2000 - Contractor kit

  • Popular kit for single mode and multimode applications.
  • KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
  • KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, memory, USB
  • KITS™ Reporting software
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
  • Meets TIA-568-C.0
KI-TK071A SM & MM - MPO & MTP™ 2000 Ge

  • Popular kit for single mode, multimode and MPO applications.
  • KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
  • KI2600XL-Ge5 Optical power meter with large area Ge detector, Autotest, 10 calibration wavelengths, memory, USB
  • KITS™ Reporting software
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Connectors: MPO / MTP™, LC, SC as appropriate
  • Optional visible fault locator eg KI6354 etc as required
KI-TK054 POF / PCS / HCS 9000 - Simple kit

  • KI9809AM 650 / 660 nm LED source
  • KI9600XL-Si5 Optical power meter with 5 mm Si detector & 6 calibration wavelengths
KI-TK076 SM & MM 2000 - Simple kit

  • KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
  • KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, USB, optional Visual Fault Locator
  • KITS™ Reporting software
KI-TK083 PON On-site - Complete turn-up

  • KI6102AA-APC PON power meter
  • Pass/Fail setup & reporting software
  • KI6610 x200 Connector inspection microscope (or Fiber identifier)
  • KI6354 Visual Fault Locator
  • Cleaning tools & materials
KI-TK022A SM Two-Way

  • KI7343C-InGaAs pair - 1310 / 1550 nm two way & ORL testers, zero warm up, Autotest, memory, USB
  • KITS™ Reporting software
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
KI-TK072A SM & MM 2000 - Australia contractor

  • KI2825-APC 850 / 1300 / 1310 / 1550 / 1625 nm Autotest LED / laser source
  • KI2600-Ge Optical power meter with Ge detector, Autotest, 24 calibration wavelengths, memory, USB
  • KITS™ Reporting software
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator as required
  • Specifically designed for Australian test requirements.
  • Meets TIA-568-C.0
KI-TK074 SM & MM 2000 - Contractor kit

  • KI2824 850 / 1300 / 1310 / 1550 nm Autotest LED / laser source
  • KI2600-Ge Optical power meter with InGaAs detector, Autotest, 24 calibration wavelengths, memory, USB, optional Visual Fault Locator
  • KITS™ Reporting software
KI-TK032 MM 9000 - Multimode

  • KI9812 850 / 1300 nm LED Source
  • KI9600-Ge Optical power meter with Ge detector, 9 calibration wavelengths
  • KITS™ Reporting software, manual data entry
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
KI-TK082 SM & MM 9000 - Transmission

KI9600-Ge Optical power meter with Ge detector, 9 calibration wavelengths
KITS™ Reporting software, manual data entry
KI6610 x200 Connector inspection microscope (or Fiber identifier)
KI6354 Visual fault locator
Cleaning tools & materials

KI-TK037 SM & MM 9000 - Contractor kit

  • KI9822 1310 / 1550 nm Laser Source and KI9812 850 / 1300 nm LED Source
  • KI9600-Ge Optical power meter with Ge detector, 12 calibration wavelengths
  • KITS™ Reporting software, manual data entry
  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
  • Meets TIA-568-C.0
KI-TK033 MM - MPO & MTP™ 9000 Si

  • A popular solution for MPO / MTP testing.
  • Multimode 850 nm applications
  • KI9812 850 / 1300 nm LED Source
  • KI9600XL-Si5 Optical power meter with large area Silicon detector, 8 calibration wavelengths
  • KITS™ Reporting software, manual data entry
  • KI6610 x200 Connector inspection microscope
  • Cleaning tools & materials
  • Connectors: MPO / MTP™, LC, SC as appropriate
  • Optional visible fault locator eg KI6354 etc as required
KI-TK038 SM & MM 9000 - Simple kit

  • KI9812 850 / 1300 nm Autotest LED source
  • KI9822 1310 / 1550 nm Autotest Laser source
  • KI9600-Ge Optical power meter with Ge detector & 9 calibration wavelengths
KI-TK081 SM 2000 + 9000 - Simple kit

KI-TK052 LAN 9000 - Simple kit

  • KI9812 850 / 1300 nm Autotest LED source
  • KI9600-Ge Optical power meter with Ge detector & 9 calibration wavelengths
KI-TK056 SM 9000 - Simple kit

  • KI9822 1310 / 1550 nm Autotest Laser source
  • KI9600-InGaAs Optical power meter with InGaAs detector & 9 calibration wavelengths
KI-TK077 SM 2000 - Simple kit

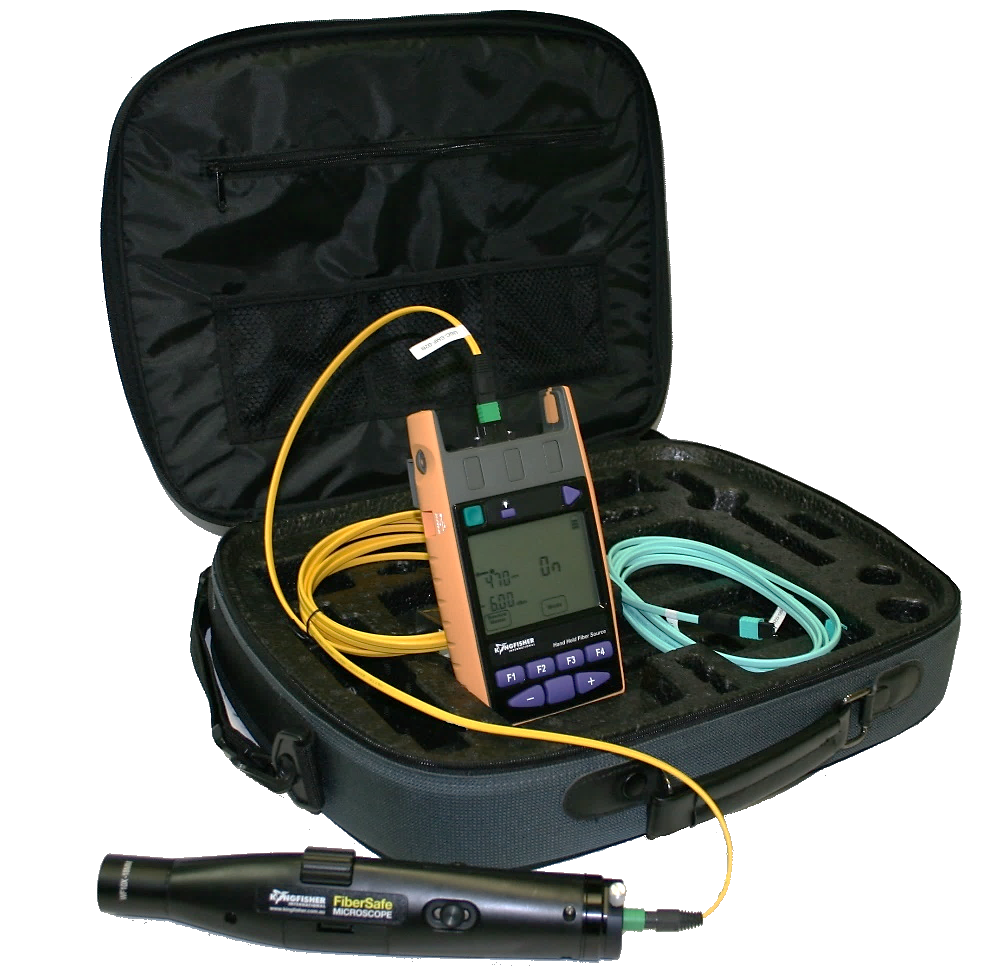

KI-TK812 12 Fiber MPO/MTP™ Visual Cable Verifier

  • KI28812 MPO-12 Visual Cable Verifier Source
  • KI6608 Microscope Optical 40x
  • Cleaning tools & materials
KI-TK824 12 / 24 Fiber MPO/MTP™ Visual Cable Verifier

  • KI28824 MPO-12/24 Visual Cable Verifier Source
  • KI6608 Microscope Optical 40x
  • Cleaning tools & material
KI-TK832 32 Fiber MPO/MTP™ Visual Cable Verifier

  • KI28832 MPO-32 Visual Cable Verifier Source
  • KI6608 Microscope Optical 40x
  • Cleaning tools & material
KI-TK872 72 Fiber MPO/MTP™ Visual Cable Verifier

  • KI28872 MPO-72 Visual Cable Verifier Source
  • KI6608 Microscope Optical 40x
  • Cleaning tools & material
KI-TK1010 General - Cleaning & inspection kit

  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
  • Additional space for other equipment
KI-TK1012 MPO/MTP™ - Cleaning & inspection kit

  • KI6610 x200 Connector inspection microscope (or fiber identifier)
  • Cleaning tools & materials
  • Optional visible fault locator eg KI6354 etc as required
  • All optimised for MTP™/MPO, LC and SC connectors
  • Additional space for other equipment

Kingfisher International Test Kit

Kingfisher Test Kits contain everything you need to get started with your fiber optic projects in Telco, Utility, LAN, WAN, FTTx, and industrial/aerospace, and more.

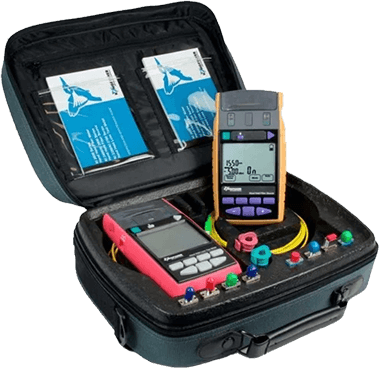

Each kit has a rugged padded case, with a custom molded interior, providing great instrument protection, while being light, comfortable, and durable in the field.

Included instruments come with quick reference guides, user manuals, connector/adapters, batteries, QA & calibration reports, and free reporting software (for compatible instruments only).

Typical test applications include single mode, multi mode, PCS and POF fiber, with laser or LED sources, a wide choice of calibration wavelengths and interchangeable connector styles including SC, FC, LC, ST, MU, MPO, LSA/DIN, E2000, 2.5 mm Universal, SMA, D4, HFBR, SMI, TOSLINK etc.

Looking for an individual test kit unit? You might be looking for our Optical Loss Test Sets, or Two-Way Tester. We also have a free reporting software solution named KITS™.



Contact a distributor in your country for a customized kit to meet your exact needs.
