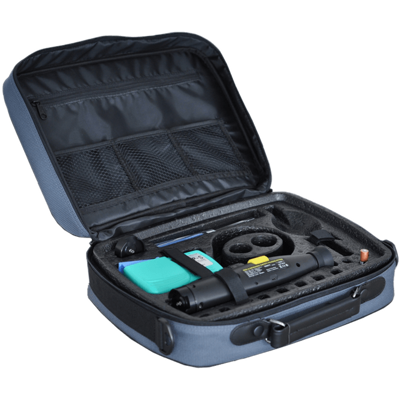

KI-TK1010 General - Cleaning & inspection kit



Images illustrative only.

KI-TK1010 General - Cleaning & inspection kit

Typical applications

  • Low to modest clean / inspect volume on SM and MM systems.
  • Connector end-face inspection microscope x200.
  • Connector cleaning tools & materials.
  • Generous space and compartments for patch leads, mandrels, documents, accessories etc.
  • Generally meets safety regulations & standards based test procedures.

Equipment betails

See brochures for specifications, alternative instruments & options.
Other instruments that could be added: VFL, fiber identifier, in-line adjustable attenuator, microscope video camera.
We gladly adjust kits to meet your exact needs.

Connector inspection microscope

x200 KI6610
Standard accessories: 2.5 mm universal PC polish connector adapter, batteries, user manual, conformance certificate.
The microscope uses 1 x AAA alkaline batteries, run time is 300 hrs, or external power via micro USB.
More microscope interchangeable connector adapters can be ordered.

Case contents

  • OPT155 - Carry case sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap. Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, additional documentation. Case can also accommodate any three KI9000 style instruments. This case is both sturdy and comfortable to use, and is the same size as the OPT153 "Small Fiber Test Kit".
  • Cleaning materials
    "Cletop-S type A" style cartridge connector endface cleaner.
    "Stick" type connector endface cleaners 2.5 mm, Qty 5.
    "Stick" type connector endface cleaners 1.25 mm, Qty 5.

Kit contents

  • KI6610 Instrument, Microscope Optical 200x, 2.5 mm Univ
  • OPT155 Option, Carry Case incl Cletop & Cleaning Sticks for KI 9xxx
