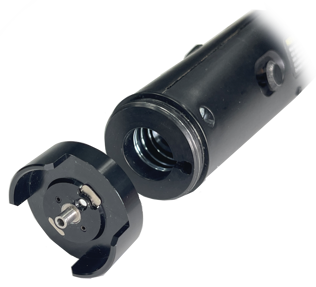

KI66xx Microscope Adaptor Series

Connector adapters for Kingfisher FiberSafe Microscopes

  • Universal adapters available
  • For regular APC connector use, connector-specific adapters are preferred
  • Accommodate duplex connectors
  • Inexpensive MPO/MTP™ options
  • OPT683 adapter ring allows use of JDSU FMA scope adapters

More interchangeable connector styles



Part Number Picture Description
OPT661A OPT661A Option, Scope Adaptor LC APC
LC APC
Order
OPT662A OPT662A Option, Scope Adaptor SC APC
SC APC
Buy (In Stock)
OPT663A OPT663A Option, Scope Adaptor FC APC
FC APC
Buy (In Stock)
OPT668A OPT668A Option, Scope Adaptor E2000 APC
E2000 APC
Order
OPT670 OPT670 Option, Scope Adaptor E2000
E2000
Order
OPT672 OPT672 Option, Scope Adaptor ARINC POF 801
Order
OPT673 OPT673 Option, Scope Adaptor MT ferrule
Order
OPT673A OPT673A Option, Scope Adaptor MT ferrule, APC
Order
OPT674 OPT674 Option, Scope Adaptor MPO/MTP 16, 32
MPO / MTP™ 16 x n style (x200 scope only) Incorporates traversing knob.
Order
OPT674A OPT674A Option, Scope Adaptor MPO/MTP 16, 32 APC
MPO / MTP™ 16 x n style APC (x200 scope only) Incorporates traversing knob.
Order
OPT677 OPT677 Option, Scope Adaptor MPO/MTP 12, 24, 36, 48... 72
MPO / MTP™ 12 x n style (x200 scope only). Incorporates traversing knob.
Buy (In Stock)
OPT678 OPT678 Option, Scope Adaptor MPO/MTP-APC 12, 24, 36, 48... 72
MPO / MTP™ 12 x n style APC (x200 scope only) Incorporates traversing knob. We also have Standards Compliant Test Quality MPO leads
Buy (In Stock)
OPT679 OPT679 Option, Scope Adaptor SMA
SMA (x200 scope only)
Order
OPT681 OPT681 Option, Scope Adaptor 2.5 mm Universal
Universal 2.5 mm, PC, Simplex / Duplex
Order
OPT681A OPT681A Option, Scope Adaptor 2.5 mm Universal, APC
Universal 2.5 mm, APC, Simplex / Duplex Note: For regular use, a connector specific adapter is preferred to correctly align the angled connector tip
Buy (In Stock)
OPT682 OPT682 Option, Scope Adaptor 1.25 mm Universal
Universal 1.25 mm PC, Simplex / Duplex
Buy (In Stock)
OPT682A OPT682A Option, Scope Adaptor 1.25 mm Universal, APC
Universal 1.25 mm, APC, Simplex / Duplex Note: For regular use, a connector specific adapter is preferred, to correctly align the angled connector tip.
Buy (In Stock)
OPT683 OPT683 Option, Scope Adaptor, Converter to 7/8" UN-28 TPI, female
Adaptor Ring for JDSU FMA series adaptors, 7/8" 28 TPI
Order
OPT630A OPT630A Option, Mini Insp Probe Adaptor, 1.25mm Male, APC
Adaptor for Mini Fiber Inspection Probe KI6680
Order
OPT631A OPT631A Option, Mini Insp Probe Adaptor, 2.5mm Male, APC
Adaptor for Mini Fiber Inspection Probe KI6680
Order
OPT632A OPT632A Option, Mini Insp Probe Adaptor, LC Female, APC
Adaptor for Mini Fiber Inspection Probe KI6680
Order
OPT633A OPT633A Option, Mini Insp Probe Adaptor, SC Female, APC
Adaptor for Mini Fiber Inspection Probe KI6680
Order
OPT634A OPT634A Option, Mini Insp Probe Adaptor, FC Female, APC
Adaptor for Mini Fiber Inspection Probe KI6680
Order
OPT635 OPT635 Option, Mini Insp Probe Adaptor, MPO, PC/APC Interchangeable
Adaptor for Mini Fiber Inspection Probe KI6680
Order
Estimated Delivery

In Stock - With same-day processing, these products are typically recieved by customers within 2-5 business days of a confirmed order under 5 units. This applies to major cities across: USA, Western Europe, Asia, and Oceania. Larger orders may experience some delays.

On Order - With same-day processing, these products are typically recieved by customers within 5-15 business days. Delays up to six weeks may apply for some products.

For more information on our delivery capacity, Contact Us.
