Overview

A shirt-pocket size LED fiber source ideal for general testing of multimode, PCS or POF systems at 850 and 1300 nm. It provides, high accuracy and simplicity of use. It can also achieve useful short-range testing on singlemode systems at 1300 nm, since it has a specified output level into SMF.

  • Encircled Flux compliant modal distribution
  • Rugged, drop-resistant construction
  • User defeatable auto turn-off
  • Excellent stability
  • Lanyard, shirt pocket clip & padded pouch
  • Tone generator & Multi-Fiber ID function
  • Easy use TamperLock mode
  • Compatible with Autotest power meters
  • Interchangeable optical connectors
  • Full QA reports with ISO9001 compliant calibration

Key Features

Specifications

KI9812A specifications
Output wavelength 850-1300 nm LED

Output power (fixed) -20 dBm ±1 dB (@ 62.5/125 µm) / -22.5 dBm (@ 50/125 µm) / -32 dBm (@ 9.5/125 µm)

Short term stability (for 15 min, typical, ±2 °C, after warm-up) 0.01 dB

Stability over temperature 0.35 dB (typical)

Wavelength drift 0.4 dB (typical)

Mode Controlled Mode distribution @ 50/125 µm is compliant with the following standards: IEC 61280-4-1 {Ed.1.0}, TIA/EIA 526-14A and TIA TSB-178.

Reconnection repeatability (95% confidence) 0.05 dB

Country of Origin Australia

Shipping Weight 500 g

General Pocket Fiber Source KI 9800A Series specifications
Calibration validity (ISO/IEC 17025) 3 years

Modulation 270 Hz, 1 kHz, 2 kHz ±2 %

Multi-fiber ID 12 fibers

Autotest Compatible with KI Autotest power meter port & matching λ

Power 2 x AAA (LR-03) Alkaline

Battery life Laser/LED source: 40/35 hours (typical) in Autotest

Auto off Selectable

Case Polycarbonate with captive dust cap, 2.5-meter drop tested

Size 124 mm x 81 mm x 25 mm

Unit weight 0.15 kg

Shipping weight 0.5kg

Operating / storage temperature -15 to 55 °C / -25 to 70 °C

Relative humidity 0 ~ 95%

Warranty 3 years

IP Rating IP52


Documentation & Support

Applications

In the box

Mandrel Wrap Filters, 50 & 62.5 um OPT701

22 mm mandrel for 3 mm patch lead, 50 u core. 17 mm mandrel for 3 mm patch lead, x 62.5 u core. FOTP-50 Method A

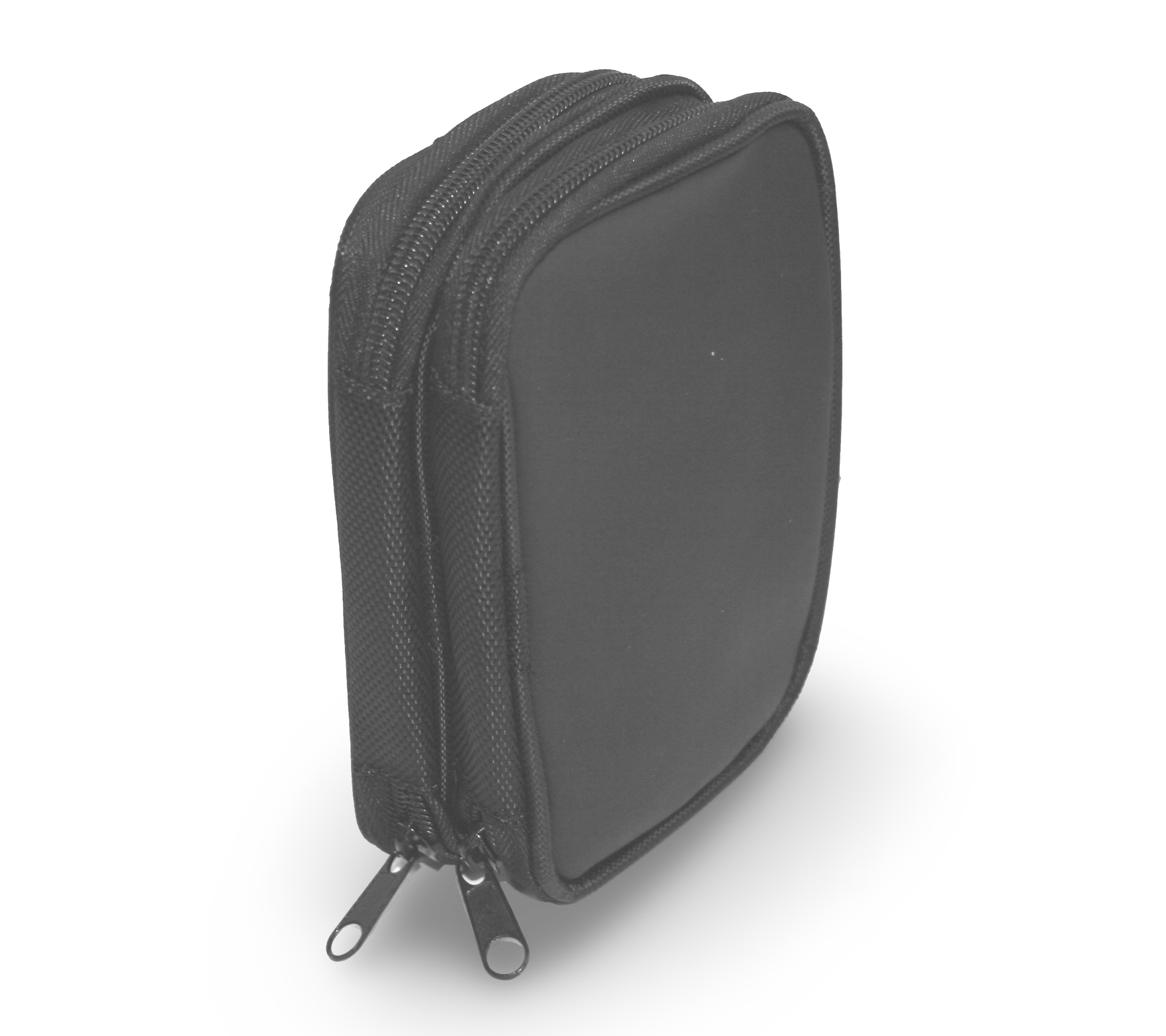

Canvas Pouch for KI9000 Series Instruments OPT156

Soft pouch for two KI9000 series instruments. With carry straps and compartments for accessories storage.

Optional accessories

OPT076

LC Hybrid Connector Adapter OPT076

LC Simplex, metal body.

OPT051

FC Hybrid Connector Adaptor OPT051

FC. OPT081 is preferred for power meters, since FC ceramic sleeves break easily.

OPT040
OPT080
OPT072

LC / F3000 Hybrid Connector Adapter OPT072

For F3000 PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, OPT076 is better value and more robust.

OPT060
OPT071
OPT077

POF Multi-Connector Hybrid Adapter OPT077

POF Multi-Adapter for POF. For: HFBR all types, bare POF, Mini Toslink, 2.5mm, Versatile Link, Redlink. Ferrule sizes: 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm x 8.5 mm deep. Please observe application advice.

OPT078

HFBR Hybrid Connector Adapter OPT078

HFBR. For POF simplex / duplex / latching / non-latching / Versatile Link / Redlink connectors. Please observe application advice.

OPT082

SMA Hybrid Connector Adapter OPT082

SMA. Please observe application advice

OPT155

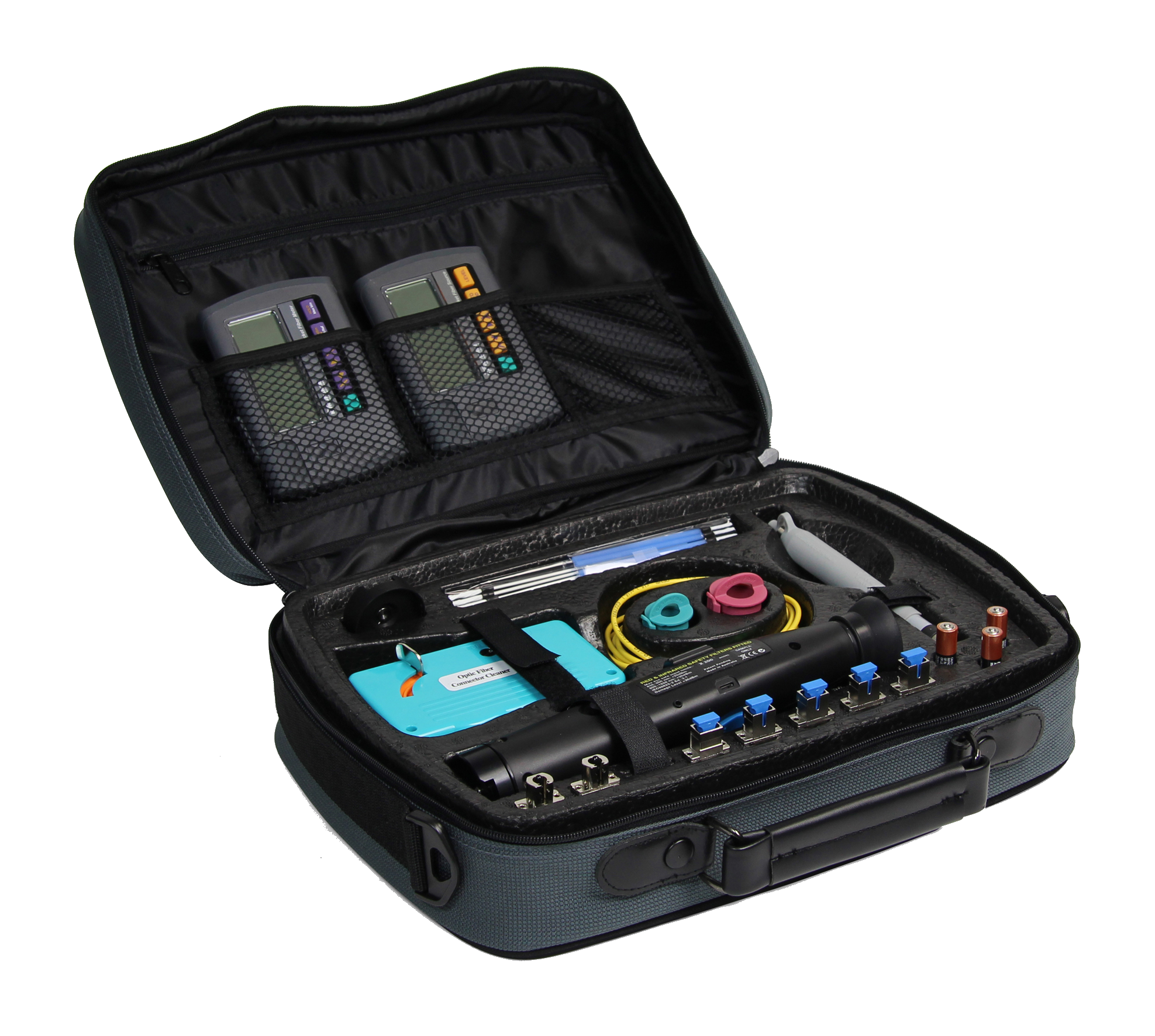

Semi-Rigid Carry Case for Test Kits OPT155

Semi-rigid canvas test kit case for three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

OPT154B

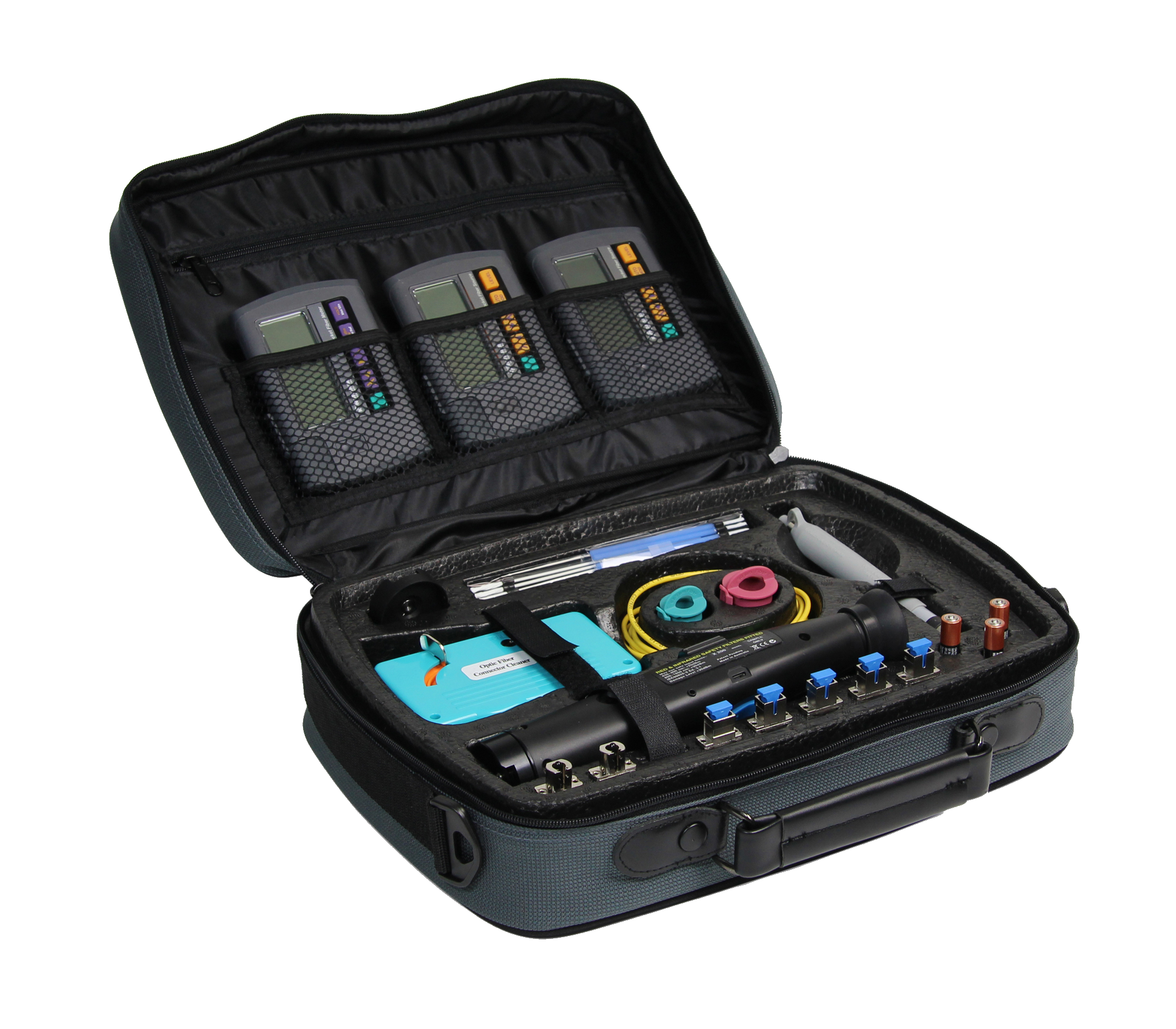

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

TOOL CLEAN-09A

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-03

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc
