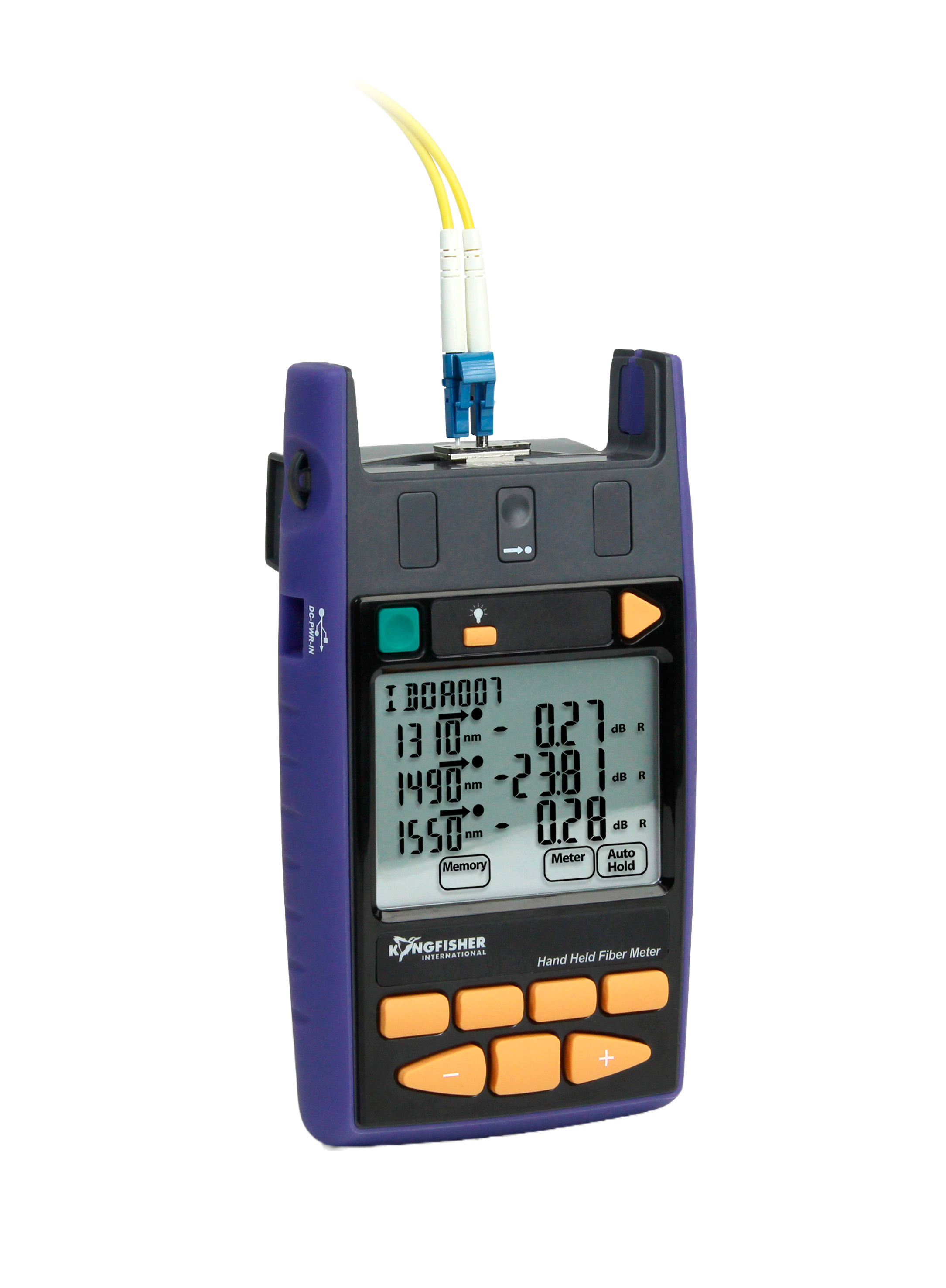

Handheld Optical Power Meter InGaAs | Kingfisher International

Overview

A handheld power meter for use by professional installers and contractors, to test power, loss and continuity on single mode & multimode fiber optic systems. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

Easy to use, rugged & versatile
25 calibration λ, 1% accuracy ISO/IEC 17025 traceable
Improved high power accuracy
Autotest with up to 3 λ displayed
Long battery life & micro USB external power
Large back-lit LCD, sunlight readable
Interchangeable optical connectors
Large memory with text naming & time stamp
KITS™ reporting software with data security
One button memory dump to USB Flash Drive
MultiFiber ID tone detection
Full QA & linearity test report

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

Test tone with multi-fiber ID

Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.

Runs on Alkaline Batteries

One-touch AutoTest

Smart communication makes sure you always get a full, complete, and consistent test result.

ILAC/NATA ISO/IEC 17025 Traceable Optical Calibration

Internationally recognised traceable optical calibration to ISO/IEC 17025

SC / LC duplex support

Use our universal interchangeable connector options for duplex testing.

Genuine 3 year calibration validity

Genuine 3 Year optical power meter re-calibration validity

High-Power Optical Power Meter

High power detector options with superior performance

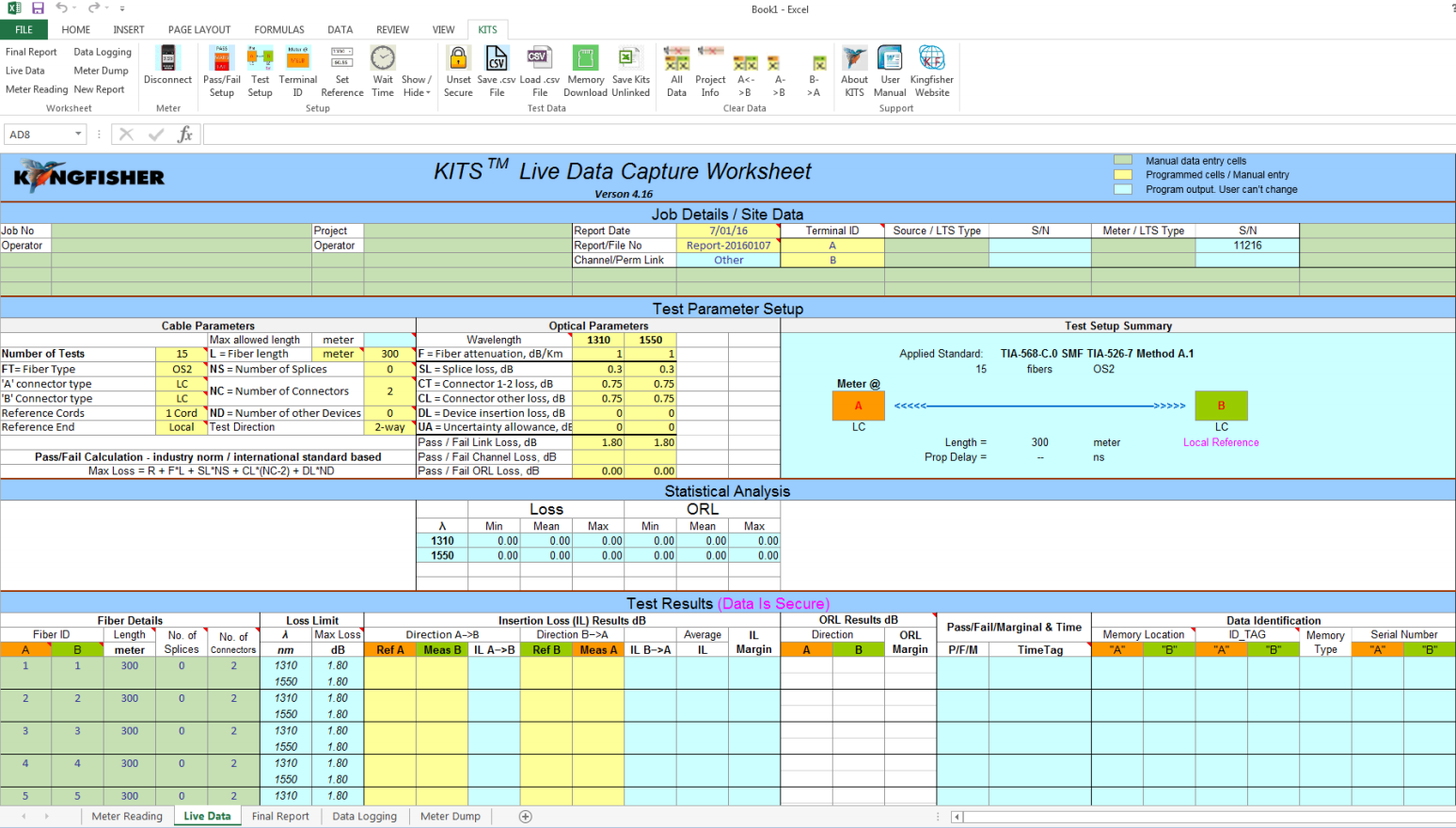

Real-time reporting software

Excel-based instrument connectivity for comprehensive reporting (against standards) and real-time data logging.

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

USB Flash Drive data export with data assurance

High capacity internal memory, easy & secure text export, with Excel-based report generation software included.

TextTag

Quickly and confidently store text data against patch-panel labels.

Specifications

KI2600-INGAAS specifications

Detector type	InGaAs

Response wavelength	600 ~ 1700 nm

Calibration wavelengths	780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm

Power range	+10 ~ -60 dBm (for 780 ~ 980 nm) / +10 ~ -70 dBm (for 1270 ~ 1650 nm)

Mid-range linearity	0.04 dB (typical)

Wavelength sensitivity (± 30 nm)	0.2dB (typical)

ID tone detection & Autotest sensitivity	Up to -50 dBm

Country of Origin	Australia

Shipping Weight	1500 g

General Handheld Power Meter KI 2600 Series specifications

Calibration accuracy	±1 % (0.06 dB)

Calibration validity	3 years (ISO/IEC 17025)

Resolution	0.01 dB

Polarization sensitivity	< 0.05 dB (typical)

Tone detection	150 ~ 9999 Hz ± 1 %

Power	2x AA (LR6) Alkaline / External via micro-USB

Battery life	Up to 1000 hours

Auto-off	Selectable

USB interfaces	micro-USB for power & software / USB-A Flash Drive

Software	KITS (free download)

Memory	1000 (4-λ tests) / Unlimited on USB Flash Drive

Size	124 x 81 x 25 mm

Unit weight	0.42 Kg

Shipping weight	1.5 kg

Operating / storage temperatures	-15 to 55 °C / -25 to 70 °C

Relative humidity	0 ~ 95 %

Warranty	3 years

IP Rating	IP52

Documentation & Support

Brochure, KI 2600 General Purpose Brochure, MPO Optimized Power Meter Brochure, POF Power Meters Brochure, XL Large Area Power Meters KI 2000 Series - General Features 2600 Competitor Comparison KI 2000 Features & Demos - Playlist

Decibel dBm definition Optical power meter detector characteristics Which loss measurement wavelengths do I need? How to choose an optical detector Choosing between a source & meter, LTS, or two-way tester MPO MTP loss testing More application notes...

KI 2600 - Quick Reference Guide KI 2600 - Quick Reference Guide (Multi Languages) KI 2000 Series - User Manual KI 2000 Series Power Meter - User Training Slides KI 2000 - Declaration of Conformance KITS Reporting Software KI 2000 Firmware Updates

Applications

This product is included in the following test kits

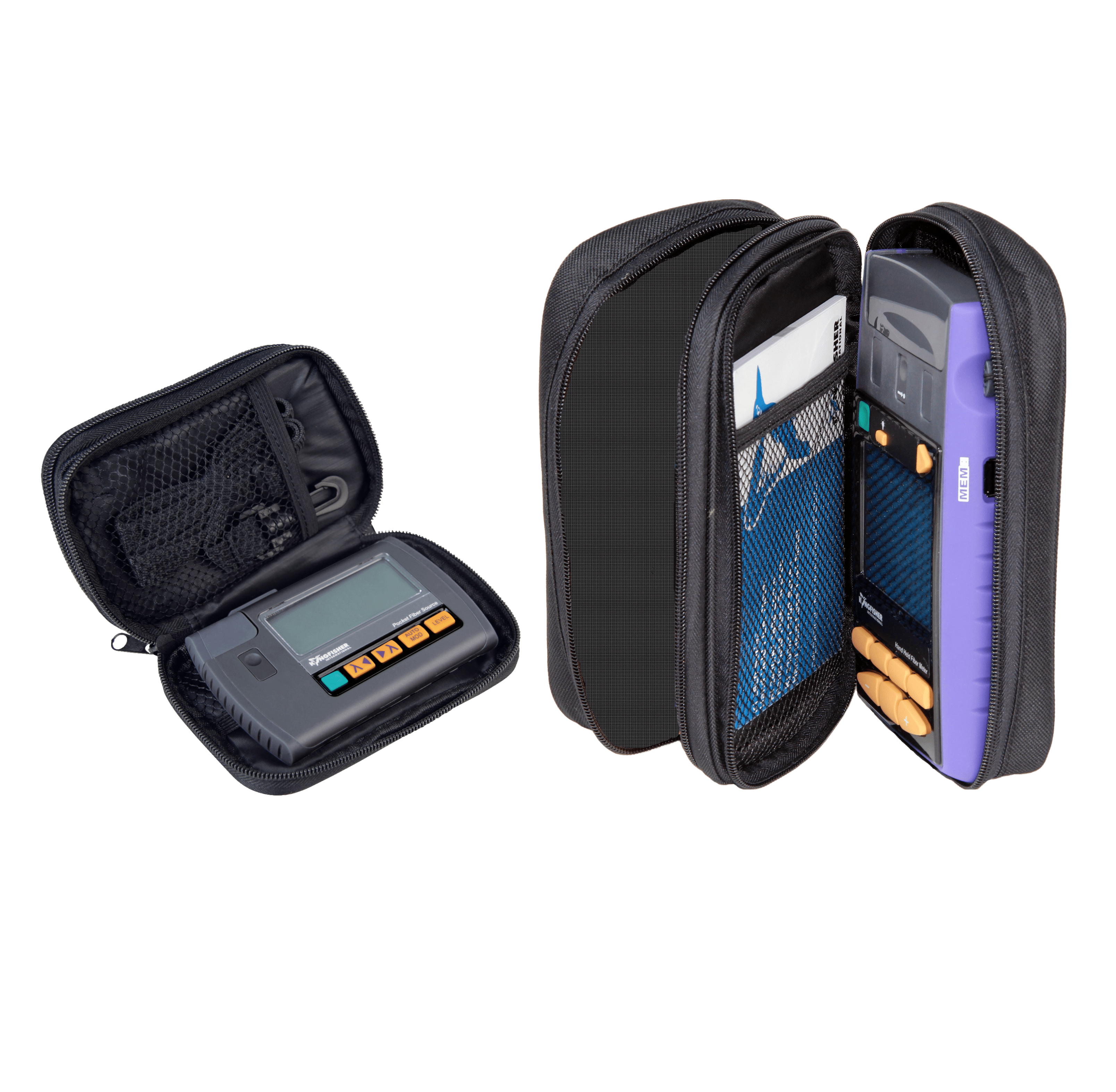

Small Test Kit SM KI-TK081

Single mode source & Autotest power meter kit, 1310/1550 nm, SM fiber.

Small Test Kit SM KI-TK077

Single mode source & Autotest power meter kit, 1310/1550 nm, SM fiber.

Test-Inspect-Clean Kit SM MM, KI-TK072

Source, Autotest meter, scope & cleaning kit. 1310/1550 nm & 850/1300 nm, SM MM fiber.

Test Kit SM MM, KI-TK074

Source & Autotest meter kit. 1310/1550 nm & 850/1300 nm, SM MM fiber.

Test-Inspect-Clean Kit 1625 nm, KI-TK072A

Source & Autotest meter, scope & cleaning kit. 1310/1550/1625 nm & 850/1300 nm, SM MM fiber.

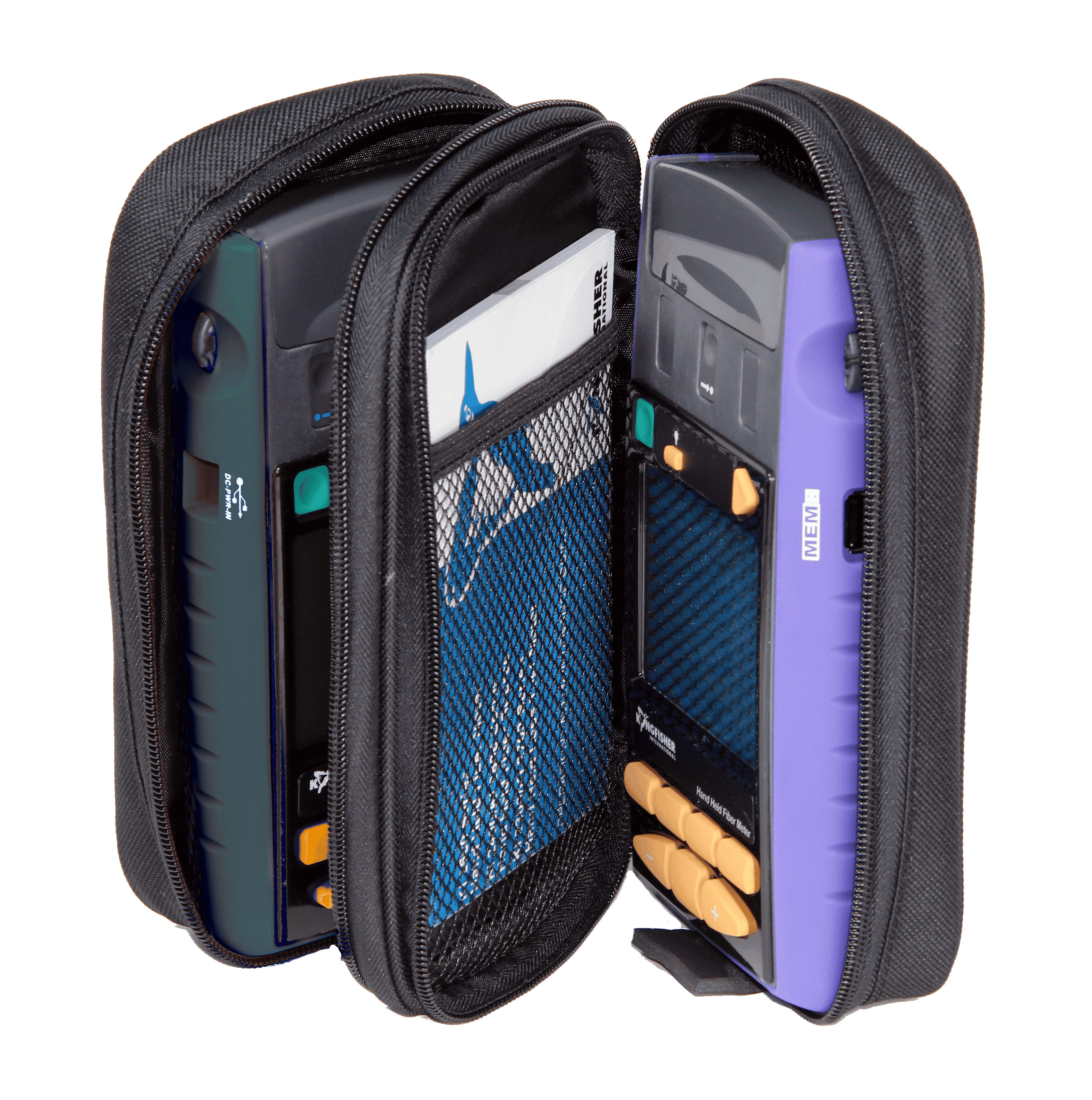

Small Test Kit SM MM, KI-TK076

Source & Autotest meter kit. 1310/1550 nm & 850/1300 nm, SM MM fiber.

Recommended for these applications

Single mode fiber

Fiber Optic Test equipment for high bandwidth or long distance telecommunications testing.

Multimode fiber

Fiber optic test equipment for in-building LAN, ethernet, campus, industrial & education applications.

Mixed single mode & multimode fiber

Fiber testing equipment for cabling contractors & mixed systems.

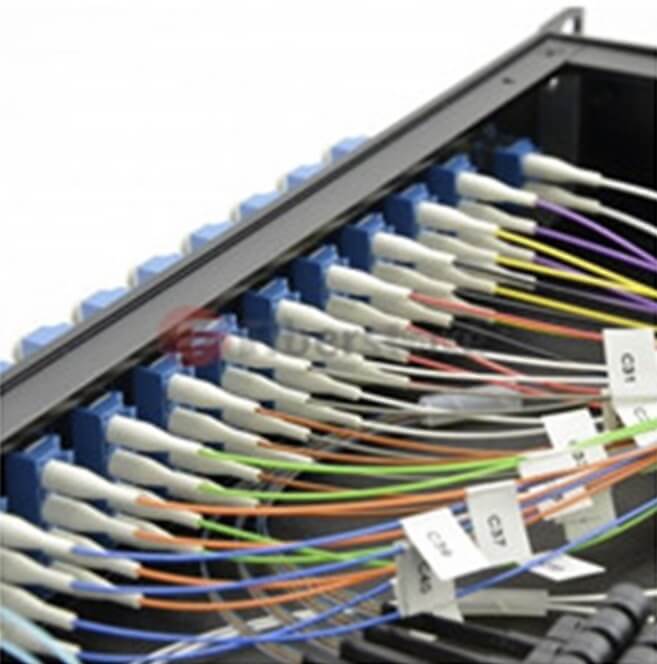

CWDM / DWDM systems

FO Testers for DWDM, CWDM & SWDM4 systems. Solutions for wavelength selective optical loss testing with WDM calibrations and features, and a broadband variable optical attenuator.

Continuity and polarity testing

Fiber optic test equipment for polarity and continuity testing.

Fiber Optic Ethernet & InfiniBand

Unparalleled flexibility, value & accuracy for physical layer cable testing on high performance data networks used in AI, data center & enterprise applications.

In the box

SC/SC Through Connector OPT046

SC-SC, Tough metal body, precision ceramic sleeve

Padded Canvas Carry Pouch OPT149

Soft pouch for two KI2000 series instruments. With carry straps and compartments for accessories storage.

USB Cable (Micro)

2 meter cable, Micro-USB to USB-A

Wrist Strap / Lanyard

Handy lanyard & matching instrument attachment point

Software (KITS)

Downloadable from Kingfisher's website for free.

Instrument User Manual

Comprehensive user manual, in well written English

Quick Reference Guide QRG

Handy quick reference guide, some in multiple languages

Quality Assurance Certificate

Traceable Calibration Certificate ILAC/NATA Compliant

IEC/ISO 17025 compliant calibration certificate

Optional accessories

LC Hybrid Connector Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve

FC Hybrid Connector Adaptor OPT051

FC-SC. OPT081 is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

ST Hybrid Connector Adapter OPT040

ST-SC. Tough metal body, precision ceramic sleeve

2.5 mm Universal Hybrid Connector Adapter OPT081

Universal 2.5 mm-SC, also compatible with duplex SC. Tough metal body, precision ceramic sleeve. Please observe application advice.

1.25 mm Universal Hybrid Connector Adaptor OPT085

Universal 1.25 mm-SC. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Tough metal body, precision ceramic sleeve. Please observe application advice.

MU Hybrid Connector Adapter OPT080

MU-SC

LC / F3000 Hybrid Connector Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

E2000 Hybrid Connector Adaptor OPT060

E2000-SC, ceramic sleeve

E2000 Hybrid Connector Adapter Green OPT060G

E2000-SC, green, ceramic sleeve

LSA-DIN47256 AVIM Hybrid Connector Adapter OPT071

LSA / DIN47256 - SC. Ceramic sleeve

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Semi-rigid canvas test kit case for two KI2000 or KI7000 series instruments, and three KI9000 series instruments. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.
